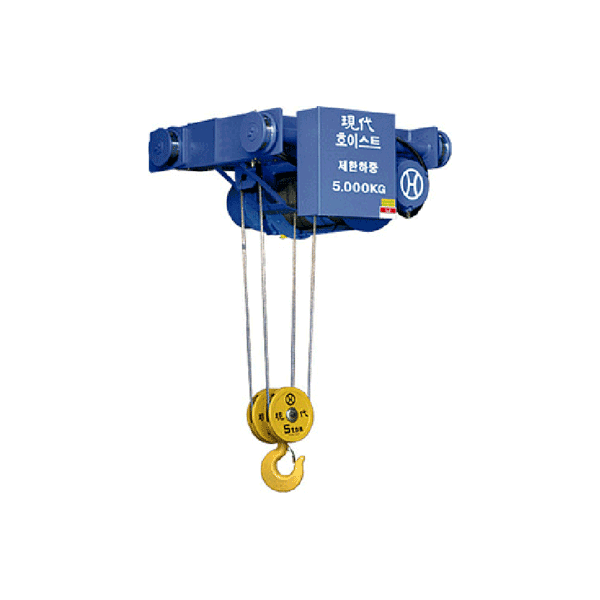

Double Special Type Hoist With Motor-Driven Trolley (HS)
사양
| Capacity (ton) | 2 | 2.8, 3 | 5 | 7.5 | 10 | 15 | 20 | |||
|---|---|---|---|---|---|---|---|---|---|---|
| Hoist | Lift height (m) | 6 | 6 | 6 | 6 | 6 | 6 | 8 | ||
| Hoisting speed (m/min) |
High speed |
50Hz | 8.3 | 7.5 | 4.7 | 3.2 | 5 | 3.8 | 3.5 | |
| 60Hz | 10 | 9 | 5.6 | 3.8 | 6 | 4.5 | 4.2 | |||
| Low speed |
50Hz | 5 | 3.8 | 3.5 | 2.4 | 3.8 | 2.5 | 2.3 | ||
| 60Hz | 6 | 4.5 | 4.2 | 2.9 | 4.5 | 3 | 2.8 | |||
| Hoisting motor (kw×P) |
High speed | 3.7×4 | 5.5×4 | 5.5×6 | 5.5×6 | 13×6 | 13×8 | 17×8 | ||
| Low speed | 2.5×6 | 2.8×8 | 4.2×8 | 4.2×8 | 9×8 | 8.5×12 | 11.5×12 | |||
| Wire rope | Construction | 6×24 | 6×37 | 6×37 | 6×37 | 6×Fi(25) | 6×Fi(25) | 6×37 | ||
| Dia.(mm)×No. of ropes | 8×4 | 9×4 | 12.5×4 | 14×4 | 14×4 | 18×4 | 22.4×4 | |||
| Brake | DC magnet disc | |||||||||
| Traversing | Traversing speed (m/min) |
High speed |
50Hz | 20 | 20 | 20 | 20 | 13.3 | 12.5 | 12.5 |
| 60Hz | 24 | 24 | 24 | 24 | 16 | 15 | 15 | |||
| Low speed |
50Hz | 13.3 | 13.3 | 13.3 | 13.3 | 8.3 | 8.3 | 8.3 | ||
| 60Hz | 16 | 16 | 16 | 16 | 10 | 10 | 10 | |||
| Traversing motor (kw×P) |
High speed | 0.75×4 | 0.75×4 | 0.75×4 | 0.75×4 | 0.75×4 | 1.5×4 | 1.5×4 | ||
| Low speed | 0.5×6 | 0.5×6 | 0.5×6 | 0.5×6 | 0.5×6 | 1.0×6 | 1.0×6 | |||
| Brake | DC magnet disc | |||||||||

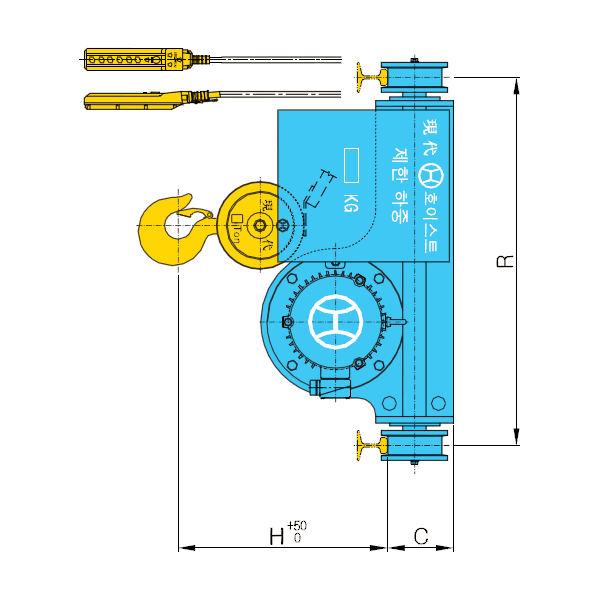

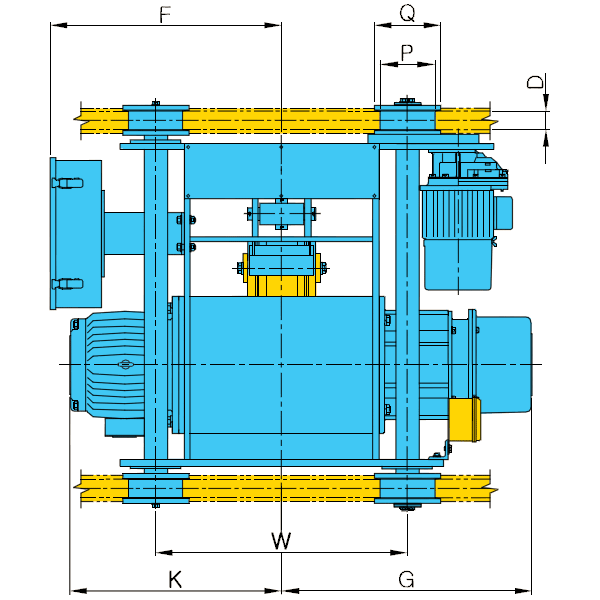

| Dimension (approx.)(mm) |
H | 495 | 495 | 525 | 890 | 935 | 1250 | 1460 | ||
| R | 950 | 950 | 1150 | 1150 | 1150 | 1500 | 1700 | |||
| C | 170 | 170 | 192.5 | 192.5 | 197.5 | 225 | 260 | |||
| G | 624 | 647 | 732 | 732 | 816 | 901 | 1049 | |||
| K | 553 | 548 | 623 | 623 | 766.5 | 953 | 1054 | |||
| F | 610 | 598 | 631 | 631 | 672 | 835 | 919 | |||
| W | 694 | 650 | 772 | 772 | 838 | 950 | 1200 | |||
| D | 47 | 47 | 47 | 47 | 58 | 58 | 58 | |||
| Q | 170 | 170 | 195 | 195 | 195 | 210 | 250 | |||
| P | 140 | 140 | 165 | 165 | 165 | 180 | 220 | |||
| Weight (approx.)(kg) | 420 | 535 | 760 | 890 | 1178 | 1680 | 2500 | |||
| Rail (kg/m) | 15 | 15 | 15 | 15 | 15 | 22 | 22 | |||
